9453 – Neodymium Magnet Ring N35 NiCuNi OD 25mm x ID 20mm x 5mm(A)

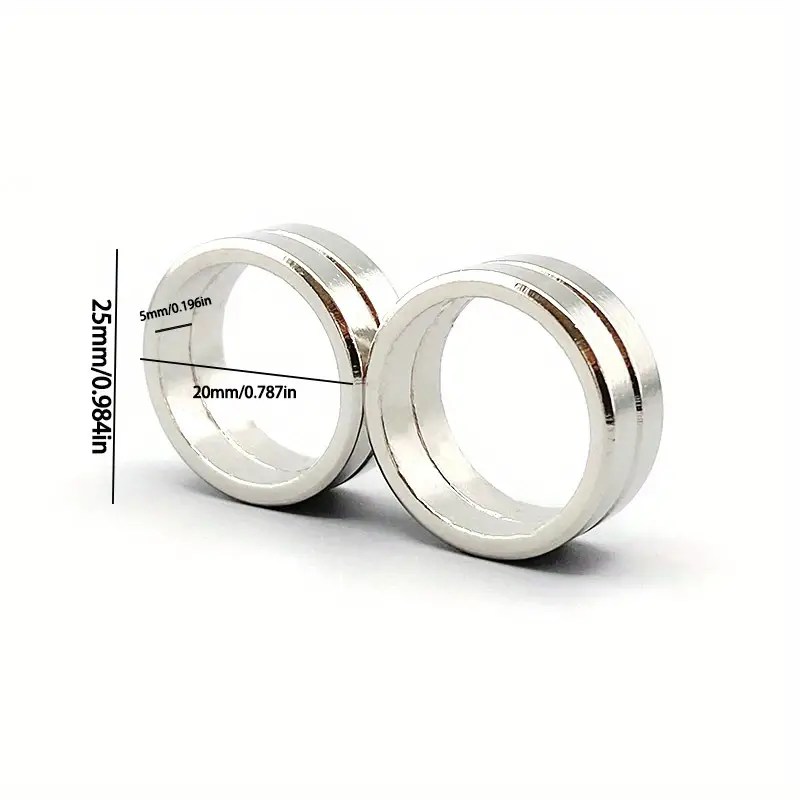

SKU 9453 is an N35 neodymium ring magnet measuring 25 mm OD × 20 mm ID × 5 mm thick. Axially magnetized and nickel plated, it gives engineers, OEMs, and procurement teams a broad metric ring geometry for sensing, alignment, shaft or tube clearance, fixtures, prototypes, and production assemblies.

Specifications

Design and application notes

Axial magnetization places the north and south poles on the two flat annular faces. The large 20 mm center opening can accommodate a shaft, tube, bushing, fastener, or other assembly feature while leaving a narrow magnetic annulus around the bore.

The listed pull force is a reference value under controlled conditions. Air gap, steel thickness, surface finish, contact area, temperature, and load direction all affect actual performance. Use the Magnet Pull Force Calculator for preliminary screening and review What Is a True Radial Magnet? when comparing axial and radial ring designs.

Procurement and custom ring magnets

Browse stocked ring magnets for related sizes, compare grades with the Neodymium Magnet Grades Chart, or submit the Magnet RFQ Builder for custom OD, ID, thickness, coating, tolerance, magnetization, or production requirements.
